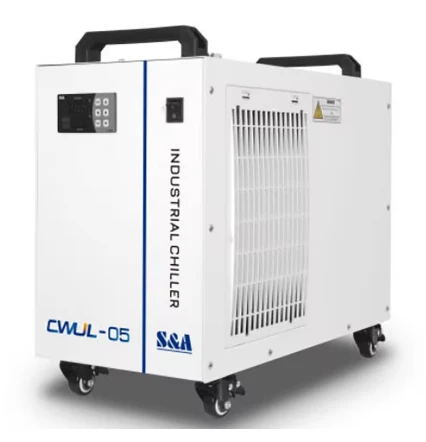

Portable Dej Chiller CWUL-05 Rau 3W 5W UV Laser Marking Tshuab
CWUL-05 feem ntau ntsia tau los muab cov cua txias rau UV laser npav tshuab txog 5W kom ruaj khov laser tso zis. Qhov no portable cua txias chiller muab siab kub stability ntawm ± 0.2℃thiab lub tub yees muaj peev xwm txog li 480W. Ua nyob rau hauv ib lub pob compact thiab lub teeb yuag, CWUL-05 UV laser chiller yog tsim los ua kom ntev nrog kev saib xyuas qis, yooj yim ntawm kev siv, lub zog txuag kev ua haujlwm thiab kev ntseeg siab. Ob lub tuav ruaj ruaj yog mounted rau sab saum toj kom ntseeg tau tias yooj yim txav mus los thaum lub chiller system tau saib xyuas nrog lub tswb sib xyaw rau kev tiv thaiv tag nrho.
Xa kev nug
Khoom Taw qhia
Product Description
| Qauv | KEV-05 | ||
| CWJ-05AH | CWJ-05BH | CWJ-05 DH | |
| Qhov hluav taws xob | AC 1P 220 ~ 240V | AC 1P 220 ~ 240V | AC 1P 220 ~ 240V |
| Ntau zaus | 50 Hz | 60 Hz | 60 Hz |
| Tam sim no | 0.5~3.1A | 0.5~5.6A | |
| Max. siv zog | 0.58 kWm | 0.59 kWm | |
| Compressor zog | 0.19 kWm | ||
| 0.25 hp ib | |||
| Nominal txias muaj peev xwm | 1467 Btu/h | 1610 Btu/h | |
| 0.43 kWm | 0.48 kWm | ||
| 369 Kcal / h | 405 Kcal / h | ||
| Cov tub yees | R-134a | ||
| Precision | ± 0.2 degree | ||
| Reducer | Capillary | ||
| Lub tshuab fais fab | 0.05 kWm | ||
| Tank muaj peev xwm | 6L | ||
| Inlet thiab qhov hluav taws xob | Rp 1/2" | ||
| Max. twj tso kua mis | 12M | ||
| Max. twj tso kua mis | 13L / min | ||
| N.W | 21 Kg | 22 Kg | 23 Kg |
Khoom nta
* Cua txias peev: 480W
* Ua kom txias txias
* Kub stability: ± 0.2 degree
* Kev tswj qhov kub thiab txias: 5 ° ~ 35 ° C
Cov tub yees: R-134a
* Compact thiab lub teeb yuag pob
* Ib qho yooj yim dej fillingport
* Pom dej theem
* Integrated tswb functions
* Kev saib xyuas yooj yim thiab txav tau yooj yim
Lub neej ua haujlwm ntev
