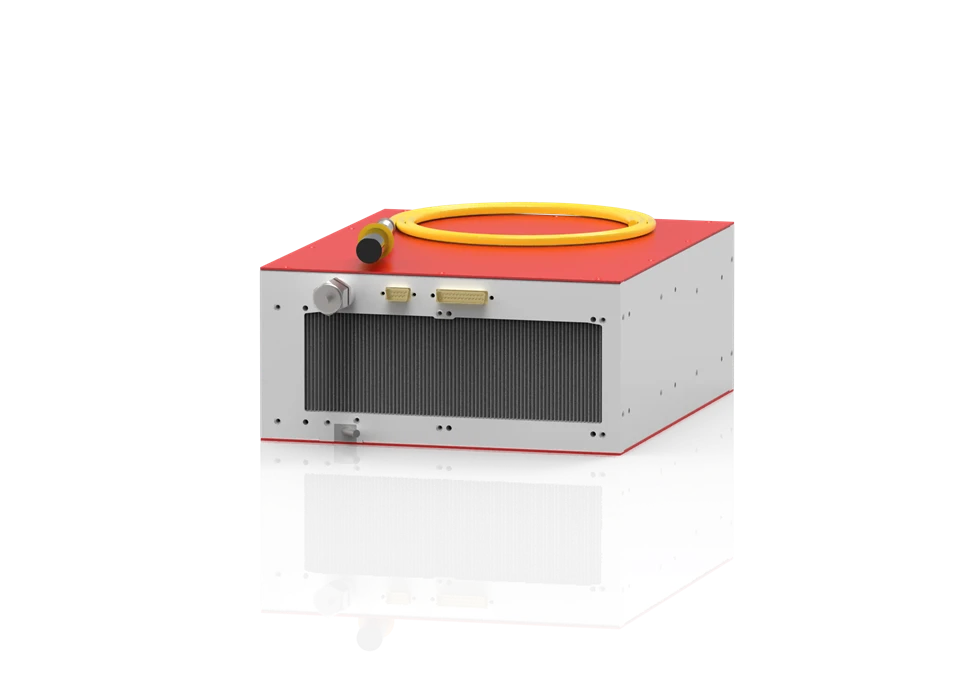

JPT MOPA Pulsed Laser Source M7 Rau Laser Marking Vuam Ntxuav
M7 series yog lub siab - lub zog fiber ntau laser uas tau txais Direct Electrical Modulation Semiconductor Laser raws li nws cov noob, siv MOPA (Master Oscillator Power Amplifier) architecture. Qhov kev tsim no muab cov yam ntxwv zoo tshaj plaws ntawm laser thiab kev tswj cov mem tes meej.Tsis zoo li Q- hloov fiber ntau lasers, MOPA laser nta nws tus kheej tswj tau mem tes zaus thiab mem tes dav. Los ntawm kev nplua -tu thiab sib piv ob qhov kev txwv no, nws ua tiav qhov siab tshaj plaws lub zog tso zis, ua rau nws sib haum nrog ntau yam ntawm cov cim substrates. Tsis tas li ntawd, kev hloov pauv ntawm Q- hloov mus rau MOPA thev naus laus zis yog ua tau, thiab cov khoom siv hluav taws xob ntau dua ua rau nws muaj qhov zoo sib xws hauv cov ntawv thov siab -
Xa kev nug
Khoom Taw qhia
| Qauv | NP-60 | TXP-80 | YDFLP-100 | NP-120 |
| Rated tso zis zog: (W) | 60 | 80 | 100 | 120 |
| Center wavelength: (nm) | 1064±5 | 1064±5 | 1064±5 | 1064±5 |
| Repetition ntau zaus (kHz) | 1-4000 | 1-4000 | 1-4000 | 1-4000 |
| Tso zis zog stability | ＜5% | ＜5% | ＜5% | ＜5% |
| Pulse width range (ns) | 2-500 | 2-500 | 2-500 | 2-500 |
| Output qhov chaw txoj kab uas hla (mm) | 7±0.5 | 7±0.5 | 7±0.5 | 7±0.5 |
| Beam zoo M² | ＜1.8 | ＜1.8 | ＜1.6 | ＜1.6 |
| Maximum ib leeg mem tes zog (mJ) | 1.5 | 2.0 | 1.5 | 1.5 |
| Cov zis fiber ntau ntev (m) | 3 (tuaj yeem kho tau) | 3 (tuaj yeem kho tau) | 3 (tuaj yeem kho tau) | 3 (tuaj yeem kho tau) |
| Input zog (VAC) | 24 | 24 | 24 | 24 |
| Kev hloov kho lub zog (%) | 0-100 | 0-100 | 0-100 | 0-100 |
| Kev siv hluav taws xob (W) | 300 | 380 | 420 | 500 |
| Qhov Loj (mm) | 325 × 260 × 75 | 325 × 260 × 75 | 350 × 280 × 112 | 350 × 280 × 112 |
| Txoj kev txias | Cua - txias | Cua - txias | Cua - txias | Cua - txias |
