200W Portable Backpack Laser xeb tshem tawm
Laser zog: 200W
Laser wavelength: 1064nm
200W Portable Backpack Laser xeb tshem tawm
Performance Parameters
Qauv | MRJ-FL-C200 (Ntshuam) | ||
Laser zog | 200W | ||
Laser wavelength | 1064nm ua | ||
Pulse Zog | 1-10mJ | ||
Focal Length | F=160mm / F=254mm (Customizable) | ||
Ntxuav taub hau hnyav | 3, 56kg | ||
Kov npo | 9.7cm ib | ||
Cable Ntev | 3m (Tsis Customizable) | ||
Scan Length | 1-100mm(Customizable) | ||
Scan Dav | 1-20mm(Customizable) | ||
Ua haujlwm kub | 0 degree -45 degree | ||
Cia Kub | -10 rau ntxiv 60 degree | ||
Kev khiav dej num | 10 feem pua - 90 feem pua | ||
Tshuab hnyav | 280kg ua | ||
Tshuab Loj | 970 x 668 x 1193 mm | ||
Txoj kev txias | Dej Txias | ||
Kev siv fais fab | 2000W | ||
Lub zog nkag | Ib theem 220VAC ± 10 feem pua, 50-60Hz | ||
Xaiv Accessory | Tes tuav / Automated | ||
Khoom Paub meej
Industrial Style, Txuag Chaw
Raws li ergonomics thiab cov yam ntxwv ntawm kev ua haujlwm, nws ua tau raws li qhov yuav tsum tau ua rau kev tsim cov chaw tsim khoom uas tau txuag chaw ntau lawm hauv ntau qhov sib txawv thiab siv rau ntau qhov chaw ua haujlwm.

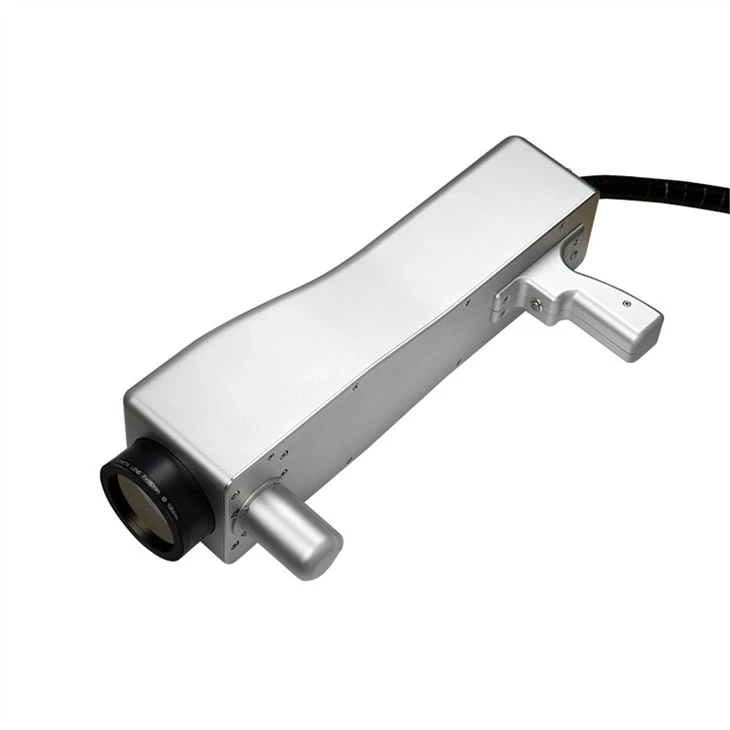

Handheld Design, Super Flexible
Lub hom phiaj ntawm MRJ-Laser yog ua kom peb lub tshuab muaj peev xwm ntau dua, los ntawm kev siv lub taub hau huv lub taub hau tsim, nws ua tiav los ntxuav cov khoom sib txawv los ntawm cov tubtxib saum ntuj.
Cov khoom ruaj khov, ruaj khov zoo

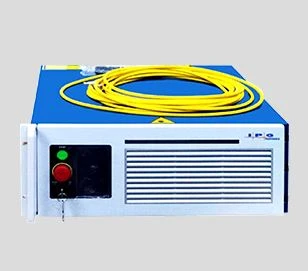

Txais yuav thawj lub teb chaws Yelemees IPG laser qhov los yog qhov zoo tshaj plaws laser qhov JPT los ntawm Tuam Tshoj, lawv yog cov lus hais zoo.
Dej txias, Kev paub zoo heev
Qhov kev ruaj ntseg tau lees paub los ntawm ob qho tib si MRJ-Laser kub tswj qhov system thiab siv cov dej ua haujlwm siab tshaj plaws.
Cov khoom siv
〓 Hlau lossis iav nto txheej tshem tawm, tshem tawm sai sai ntawm cov xim
〓 Tshem tawm xeb sai thiab ntau yam oxides
〓 Tshem tawm cov roj, resin, cov pos hniav, plua plav, stains, thiab tsim cov residue
〓 Roughening ntawm hlau nto
〓 Ua ntej vuam los yog kev sib txuas, tshem tawm cov xim, xeb, roj, vuam oxide, kev kho qhov seem
〓 Pwm tu, xws li log pwm, hluav taws xob pwm, pwm pwm
〓 Tom qab tsim cov precision qhov chaw, cov roj tshem tawm
〓 Kev tu ceev ntawm nuclear fais fab chav tsev tu
〓 Aerospace riam phom, txheej txheem rau kev tsim khoom lossis kev saib xyuas cov nkoj, tshem tawm cov xim, tshem tawm xeb
〓 Hlau nto tu hauv qhov chaw nqaim
〓 Cultural relics tu, ntxuav pob zeb, ntxuav sab nrauv ntawm lub tsev
Cim npe nrov: 200w portable backpack laser xeb tshem tawm, Tuam Tshoj, tuam ntxhab, lwm tus muag khoom, tus nqi qis
